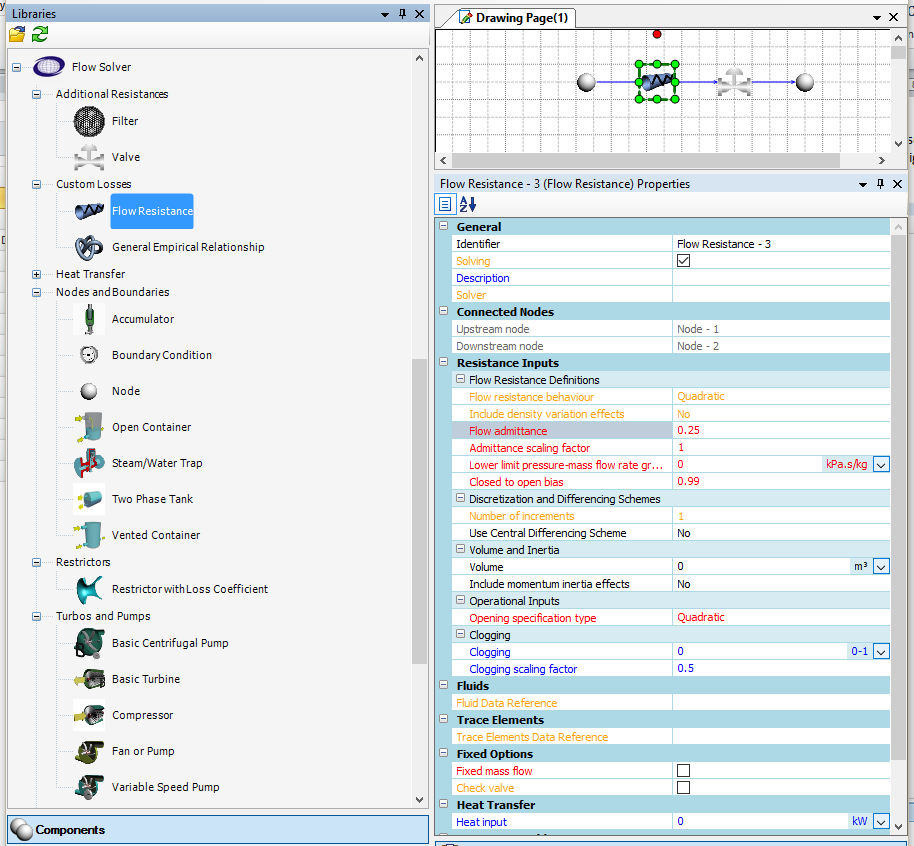

Multi-Phase Flow with Incondensable Gases and Trace Elements solver. The flow solver contains all components used to build a high fidelity flow model, for example pumps, fans, pipes and valves.

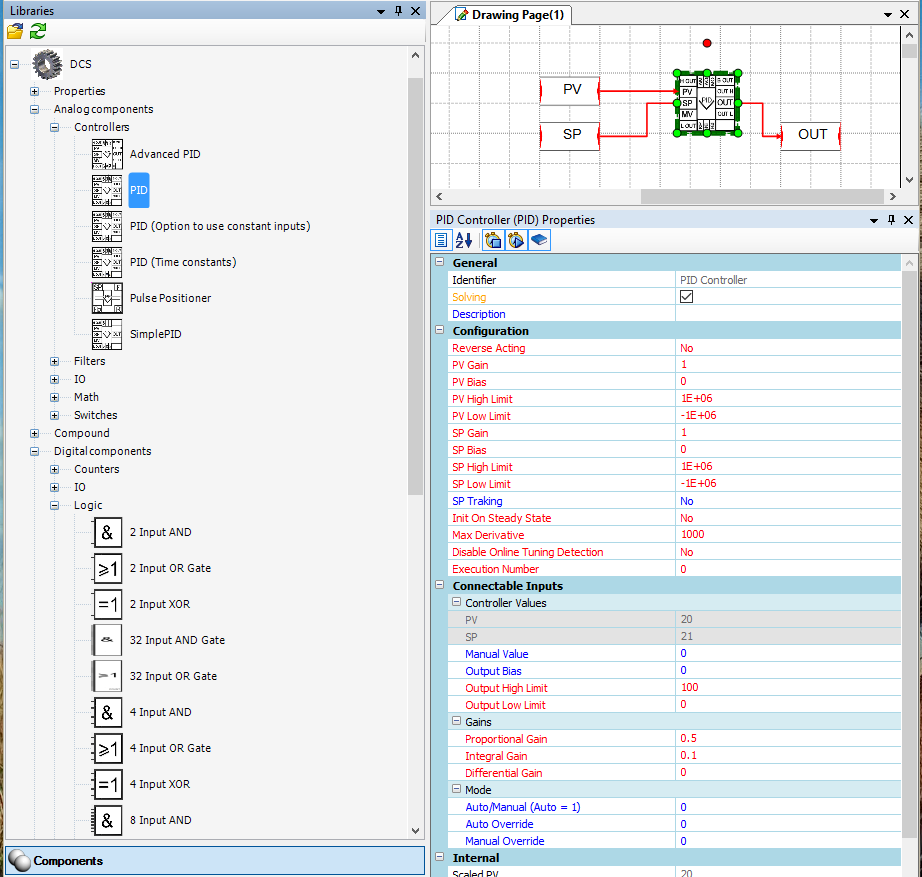

Main Control System (DCS) Library containing all the control fundamentals like links ports and also generic control system building blocks. It can be used to build and test a full-scope DCS system for any plant, or replicate 3rd party control system logics.

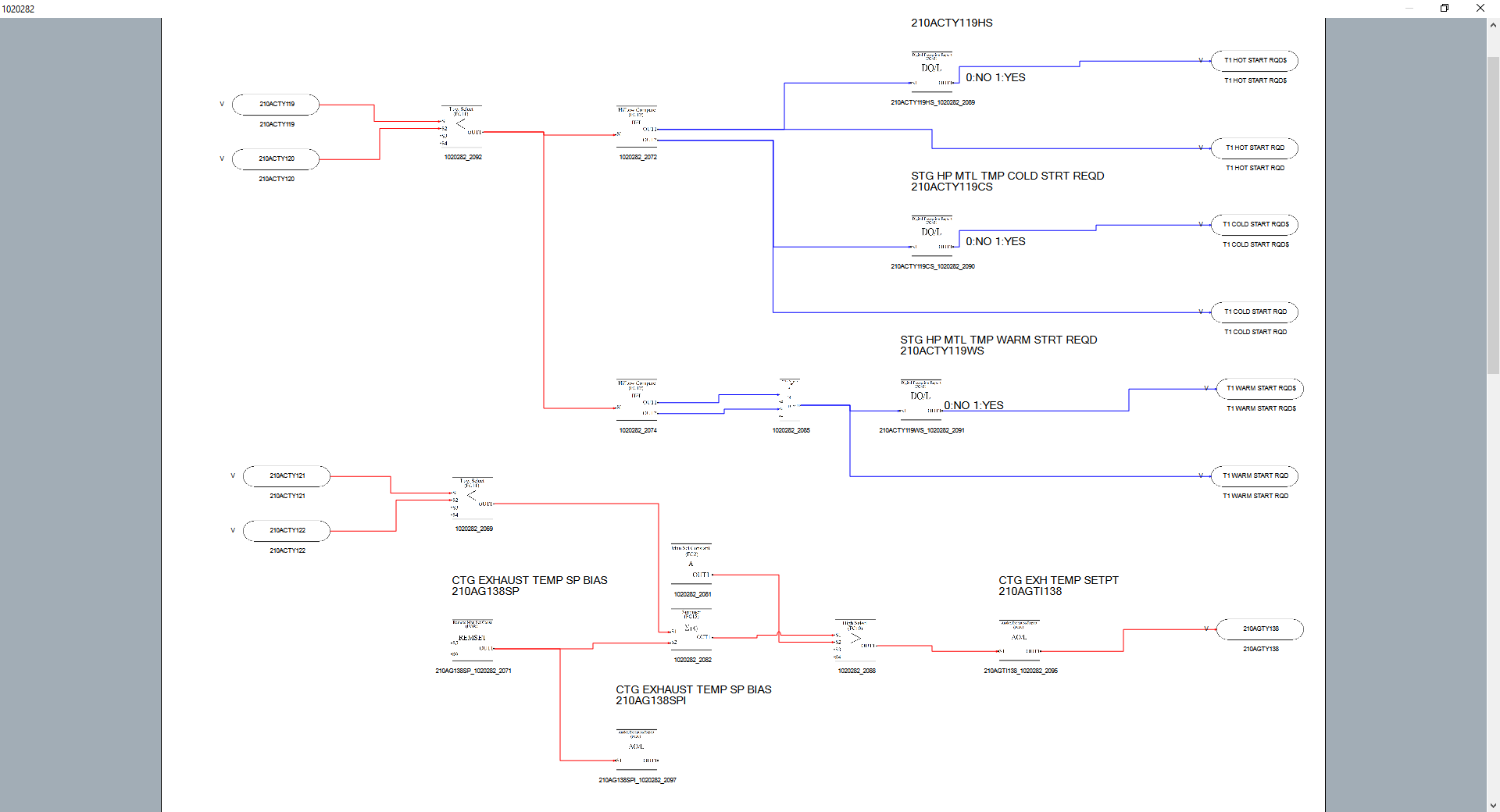

The DCS library can be extended by adding additional libraries deriving from the DCS, if a specific component related to specific DCS system is used. Available add-on libraries already created by SimGenics is summarised in the next section. Typical Logic network in SimuPact using the DCS library and an extension lib.

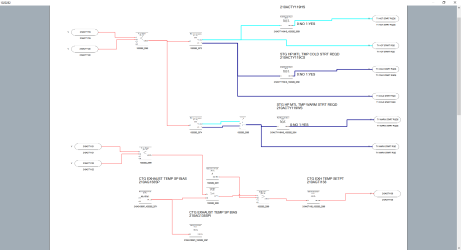

For debugging purposes the DCS has a diagnostic mode that can be activated that will change the colour of digital inks based on their status. Logic page with diagnostic mode active.

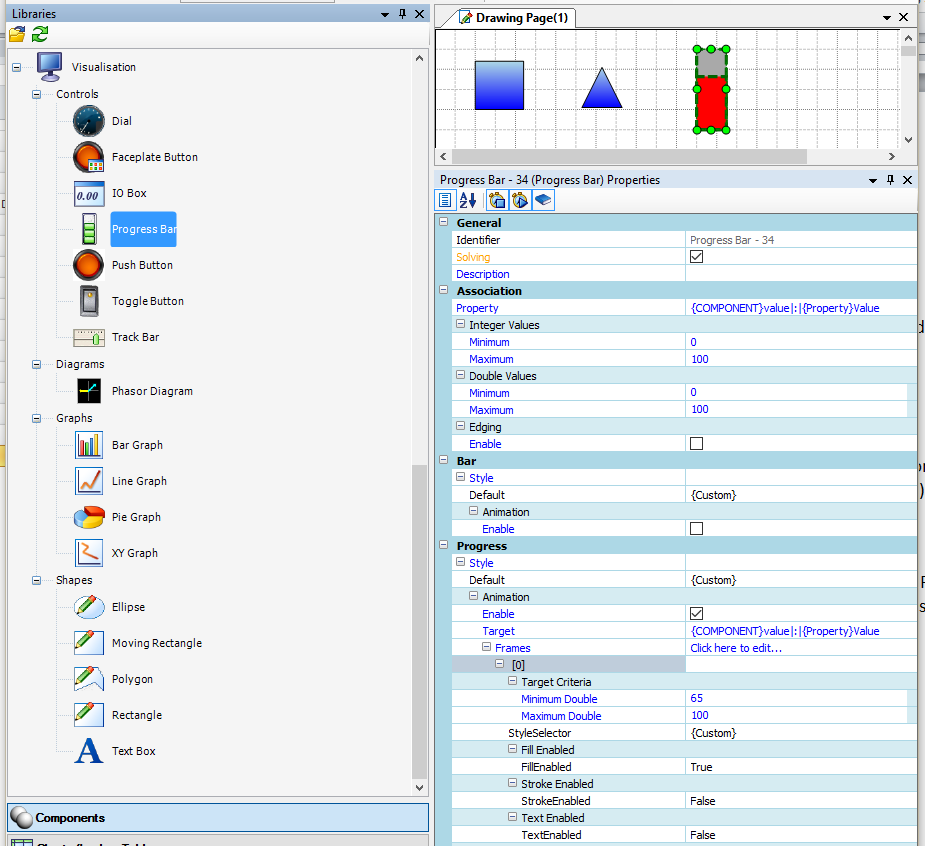

This is used for HMI, local control panel and Soft panel emulation in SimuPact. It contains all fundamental graphic objects like rectangles, polygons, buttons and gages. All objects has animation capabilities based on simulator property values. Styles are used to define the appearance of the object, for example to assign an image as the background or to specify the border width and color.

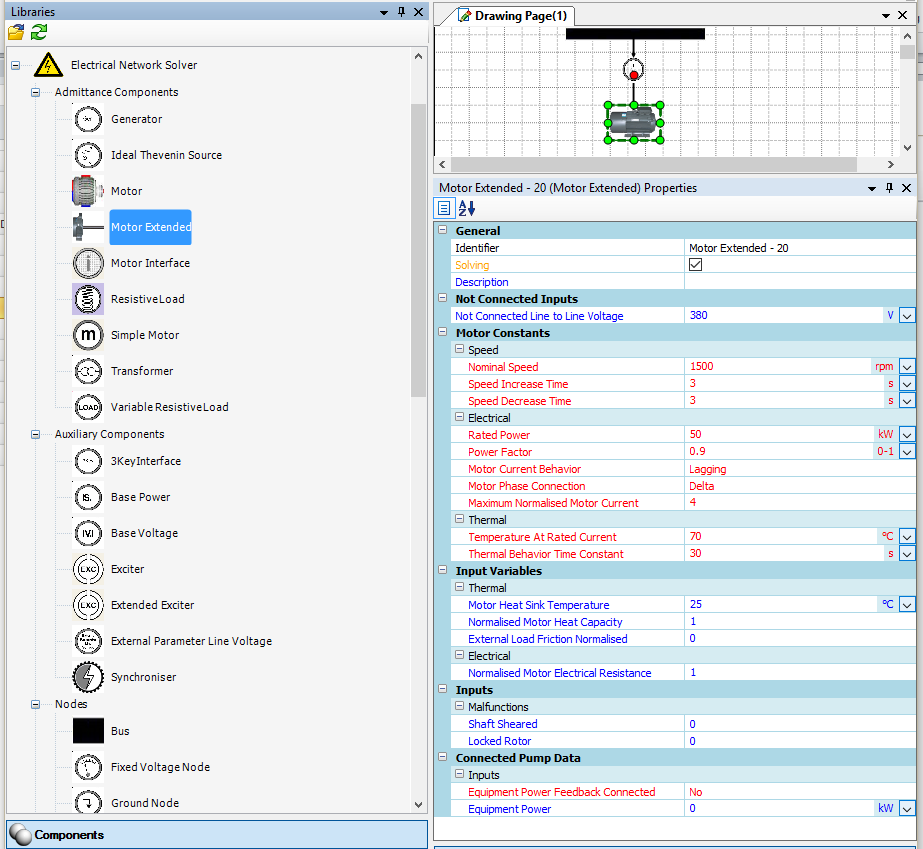

This library contains the solver and components to simulate an electrical network. It contains all the components needed to simulates the complete electrical reticulation for a power plant, including Motors, Transformers, Breakers, Busbars, Generators and Exciters, etc.

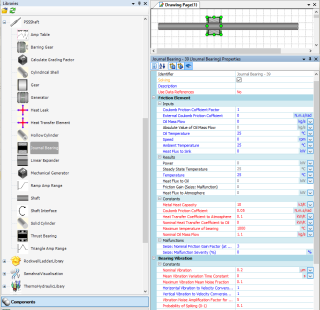

This library contains all components needed to simulate Mechanical object such as Motor or Turbine Shafts, including Bearings, Vibrations etc.

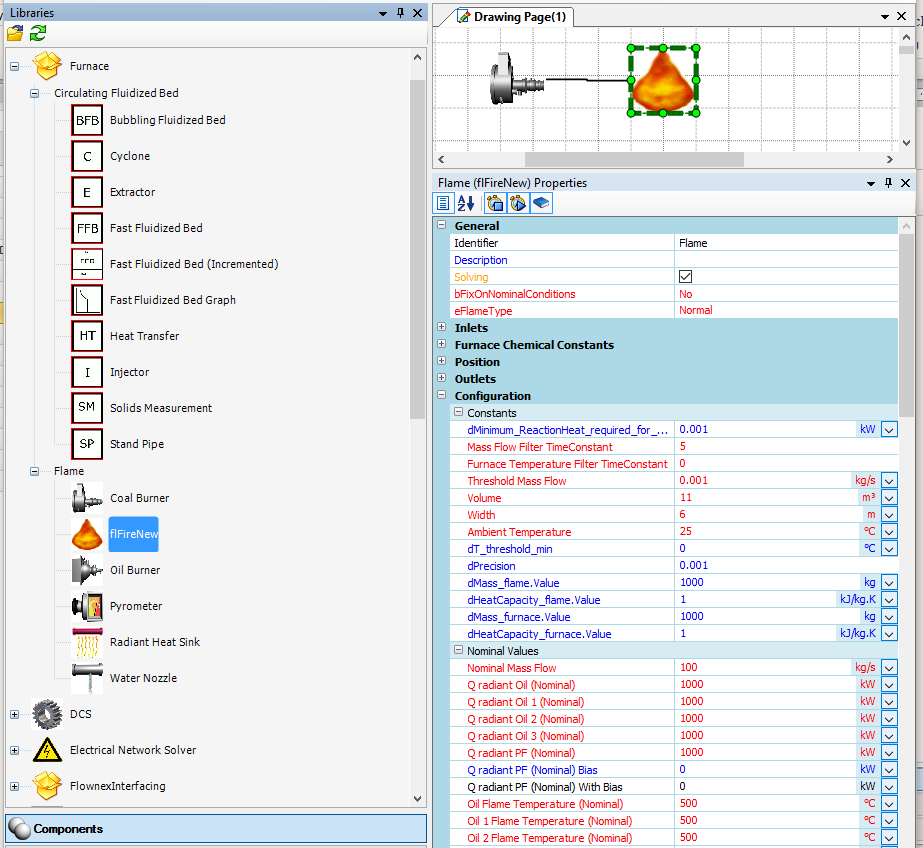

This library contains components used to simulate a furnace or combustion model, including advanced burner and flame simulation, as required to simulate coal, oil and gas boilers of Drum, Benson, Supercritical, Ultra-Supercritical and CFB type, as well as Combustion Turbines.

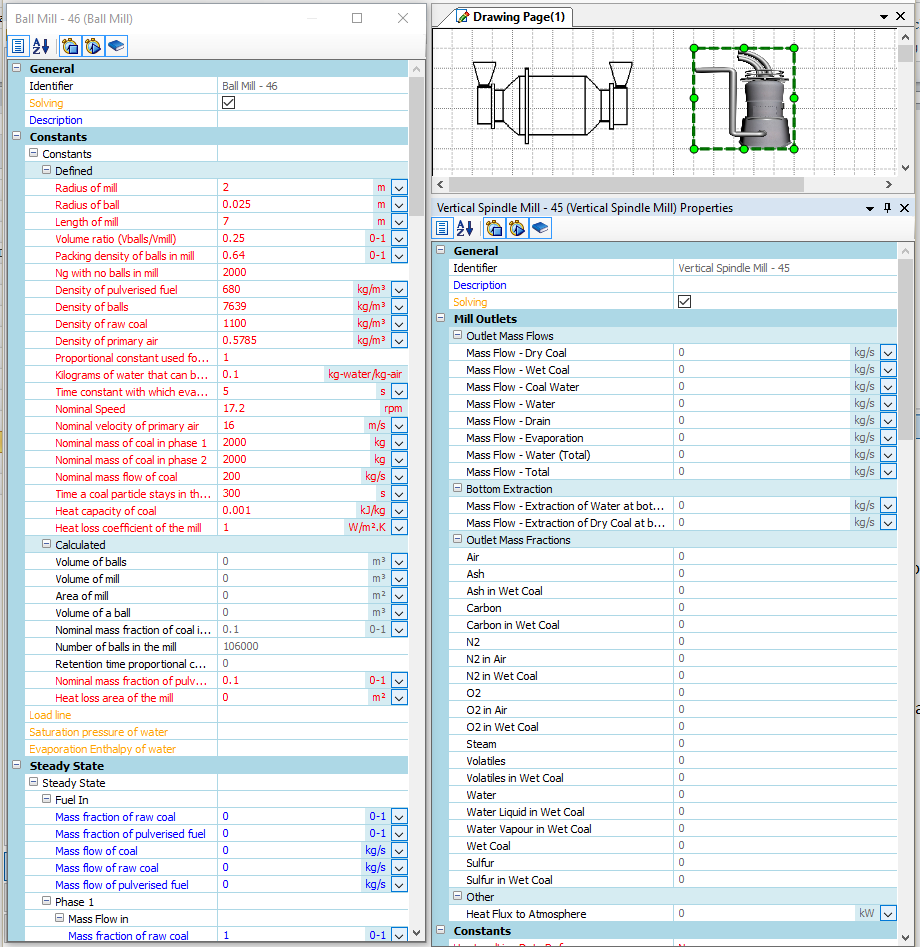

This library contains mill object for milling of coal for example a ball and a vertical spindle mill.

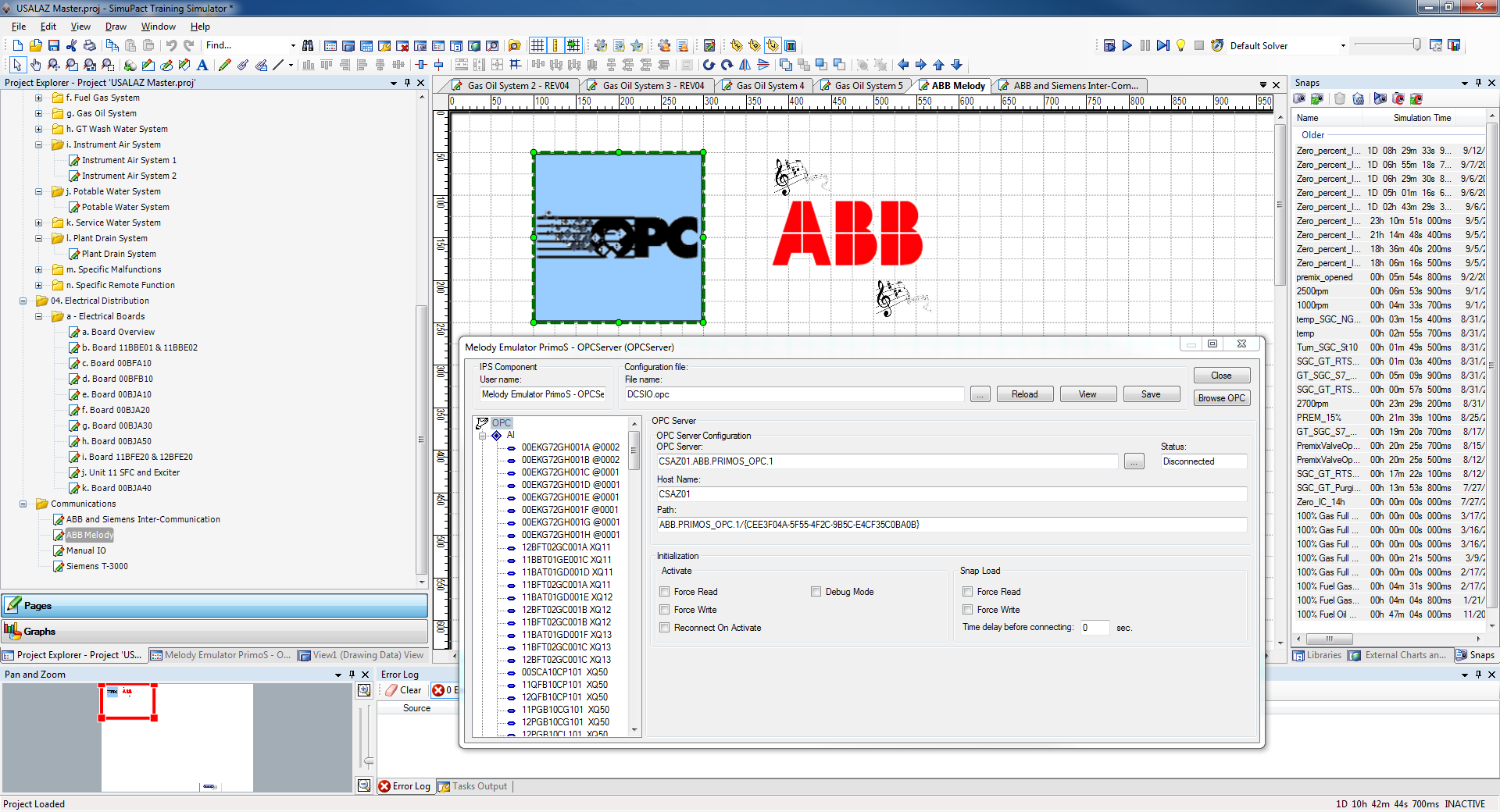

OPC Server and Client for Integration to 3rd party control emulators and HMI Systems.

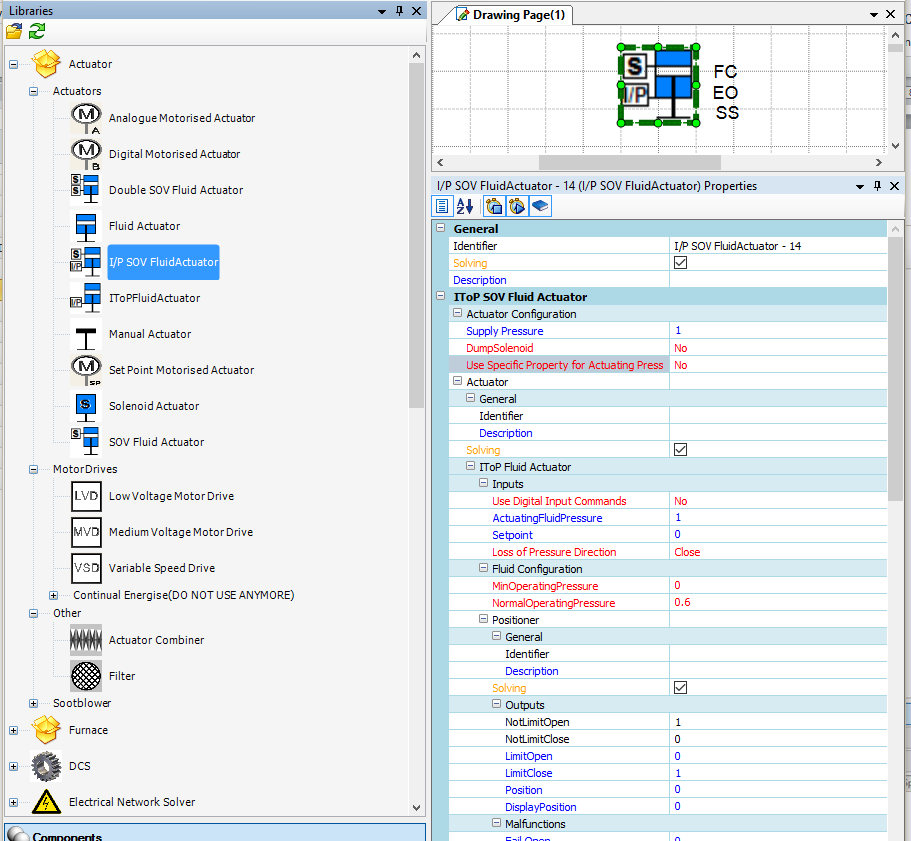

This library contains all interface objects for operating simulated equipment from a control system. It contains a number of different valve actuator components and also a number of different motor drives.

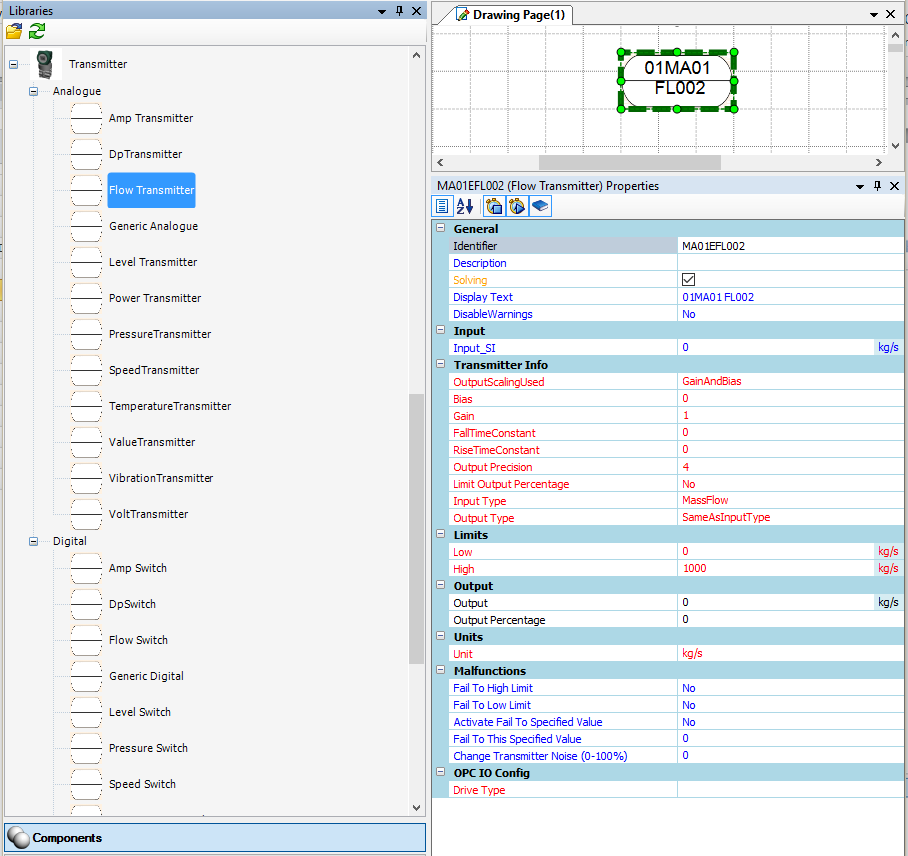

This library contains all instruments used as interface between the process model and the control system. It has a number of different Meters and Switches for measuring flow, temperature, pressure etc.

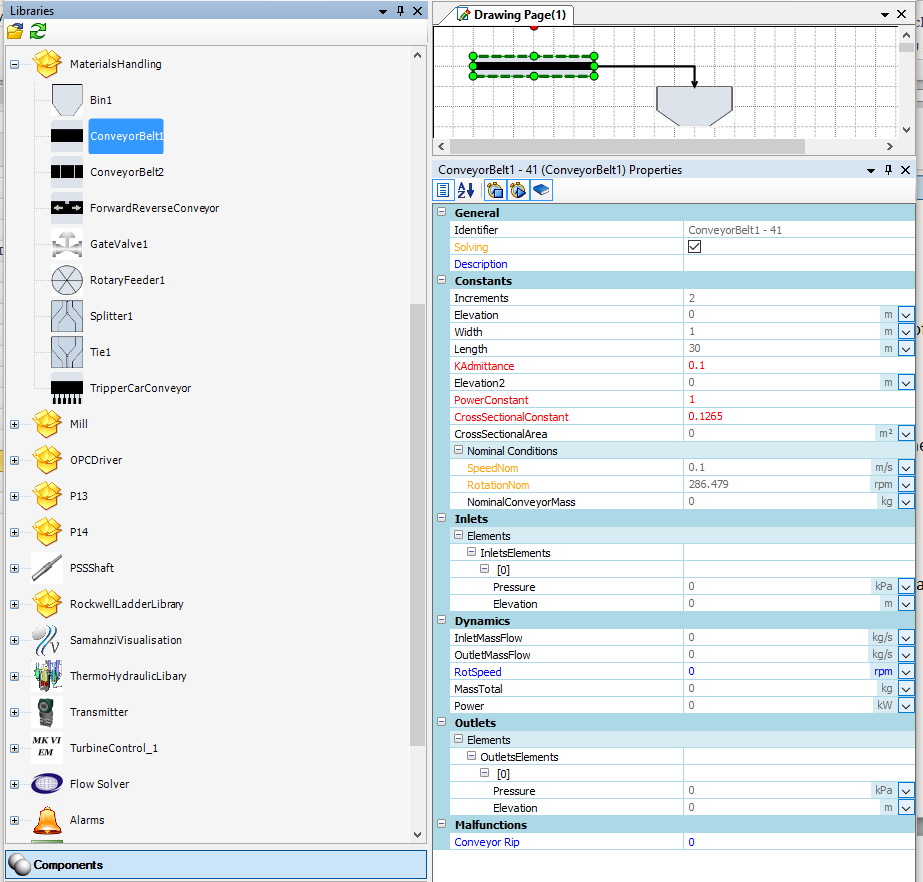

This library contains components used to handle materials for example Conveyor Belts, Feeders, Splitters, Bins and Gate Valves.

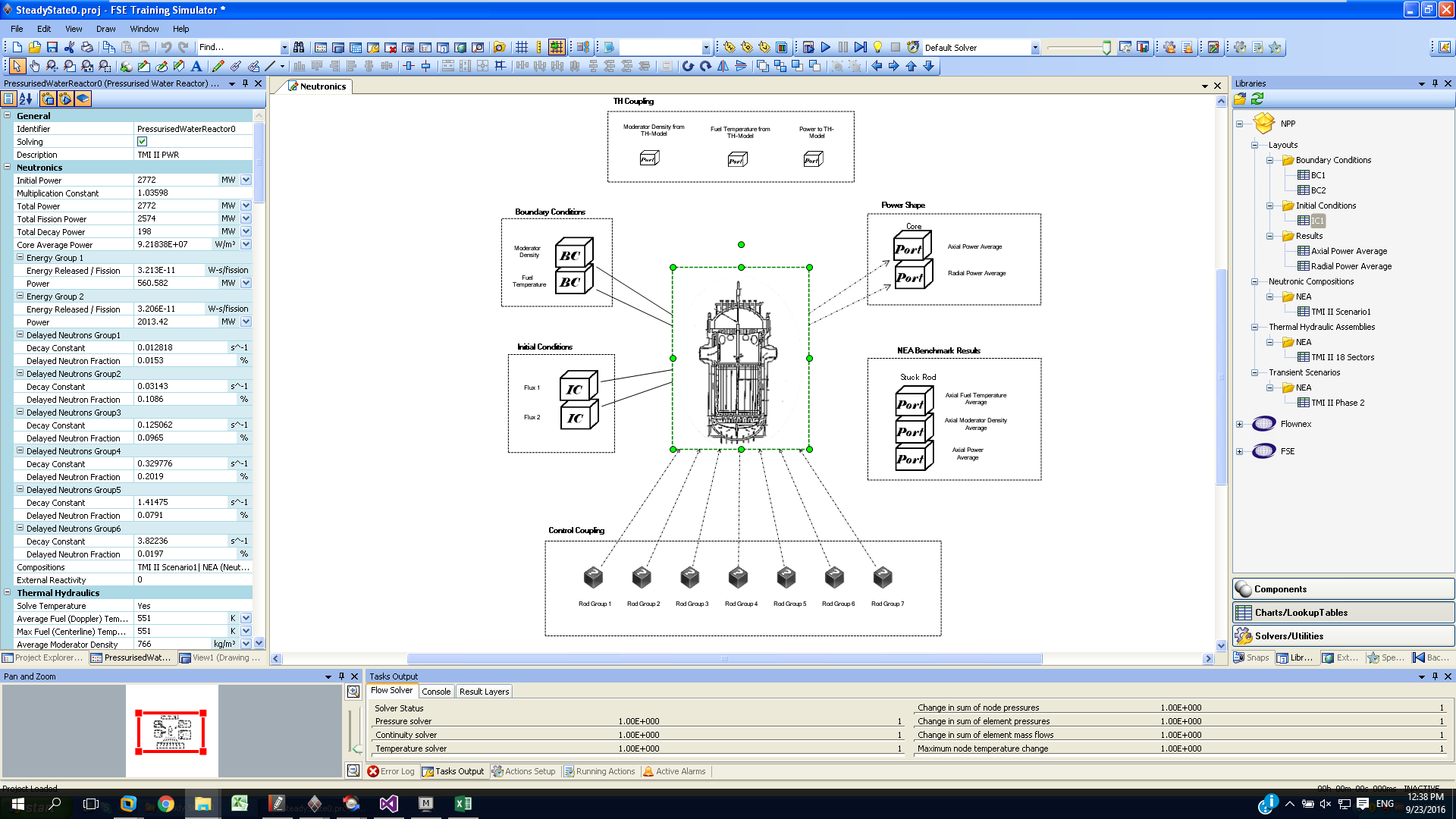

This is a Nuclear power plant library that contains a model for the 3D neutron diffusion model of a PWR (Pressurised water reactor).

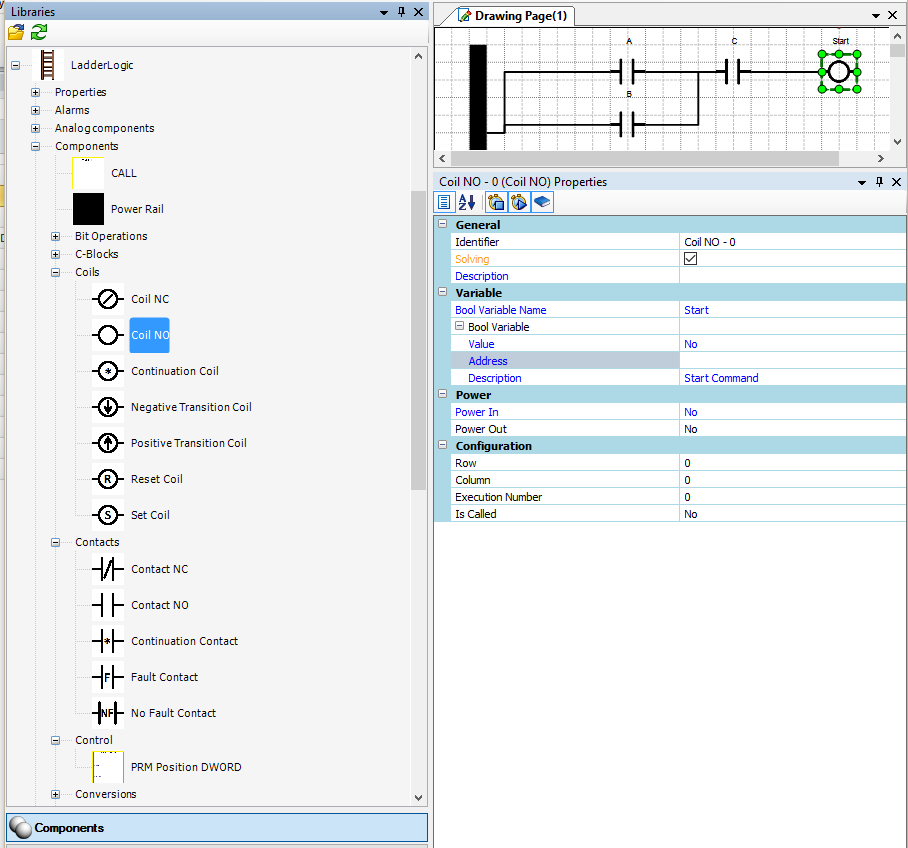

This is a ladder logic task is based on the GE Machine edition ladder logic system. The ladder logic library features the same engineering functions as the DCS library but the main difference is the execution order that is based on rows and not only by number.
Typical blocks found in the ladder logic library

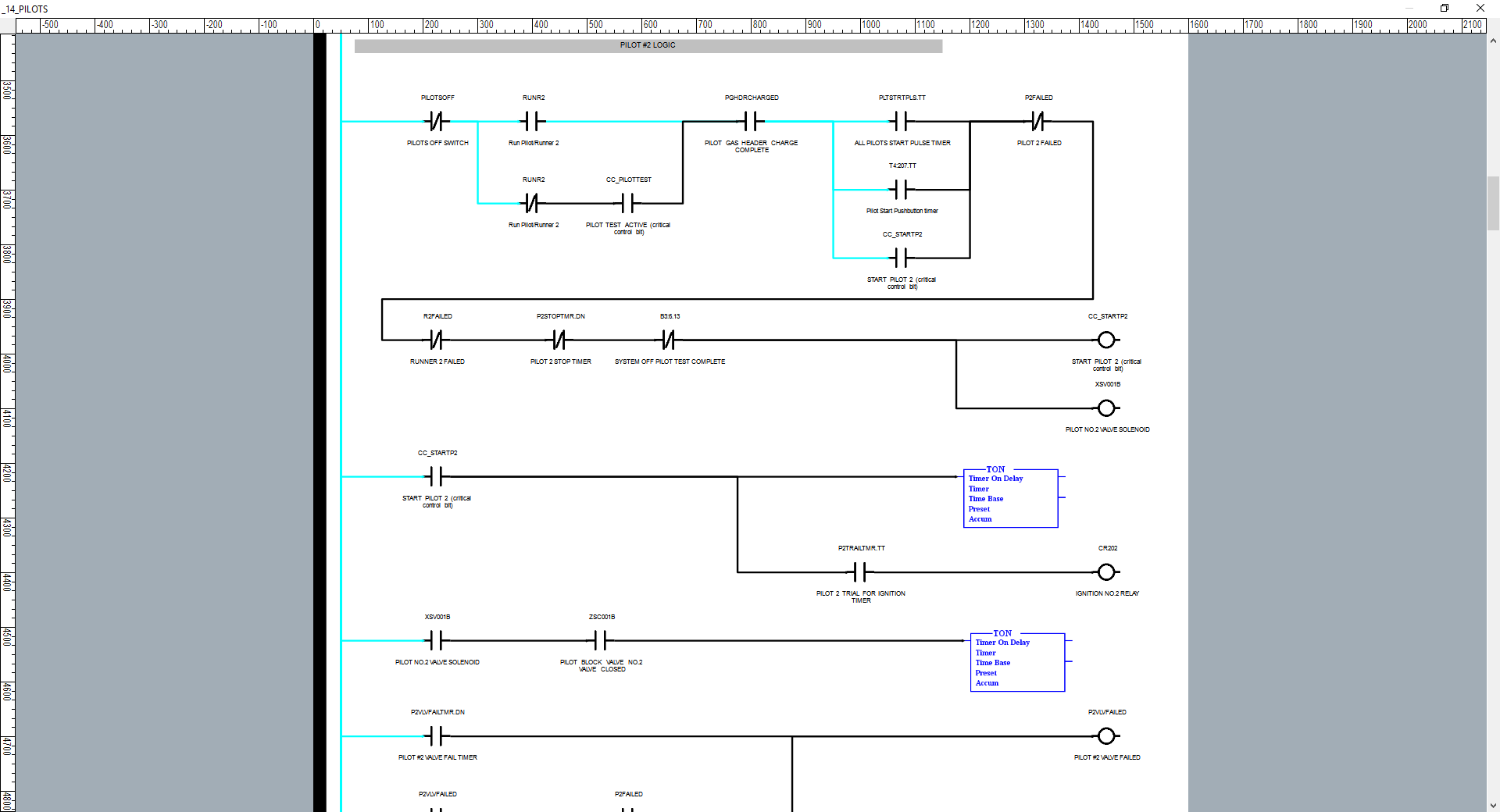

Typical ladder logic pages with diagnostic mode active. It also includes an Importer/Translator for GE Machine edition logic.

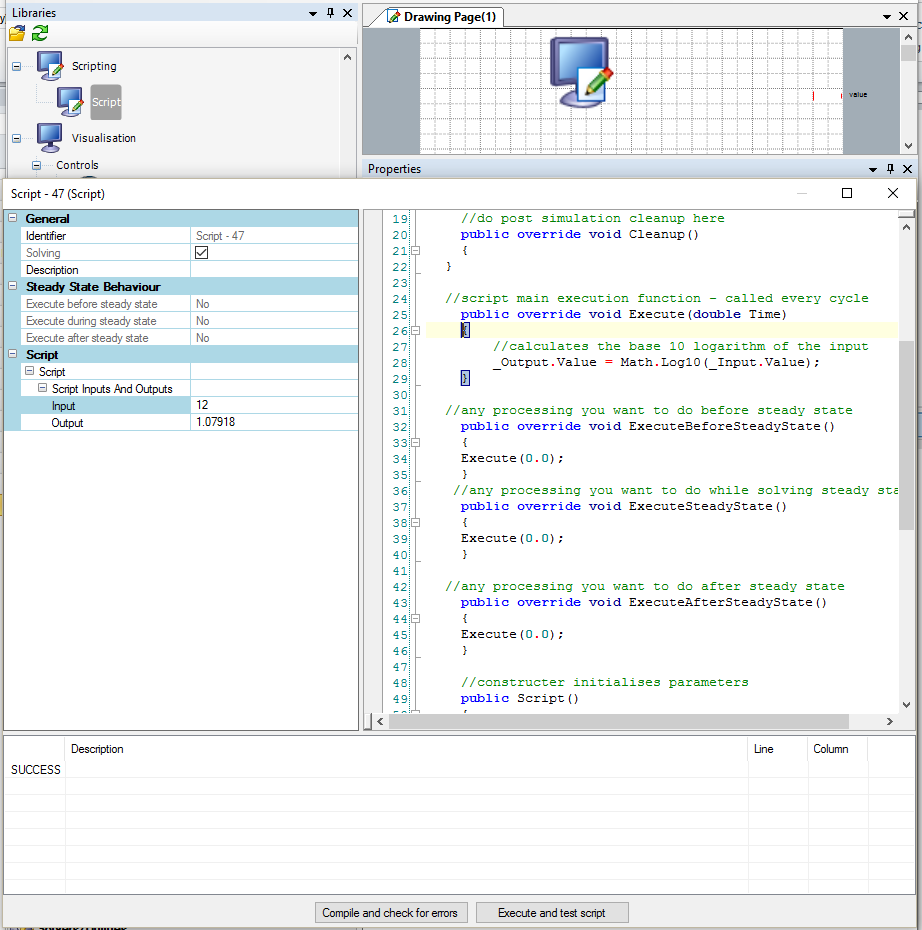

Integrated C# Scripting Engine.
